Linear Displacement Sensor

Description

TTI Linear Displacement Sensors use a fully active 350-ohm strain-gage bridge to sense spindle displacement, giving infinite resolution and excellent linearity. They are compatible with all standard strain-gage instrumentation with bridge excitation from 2 to 10 volts. With a selection of models having full-scale ranges from 2 mm to 100 mm, Linear Displacement Sensors feature a unique design that produces maximum operating forces of less than 4 N. Available with specially
designed mounting fixtures, these versatile sensors are ideally suited for use in research, manufacturing and process control applications.

IT Linear Displacement Sensors produce an output voltage proportional to a captive, guided spindle displacement by means of a 350-ohm strain gage bridge with four active arms. This arrangement provides excellent temperature compensation and linearity.

IT Linear Displacement Sensors exhibit the same inherent advantages for linearity, versatility and precision as many other strain-gage-based sensors. As such, they are systems-compatible with a wide range of commonly used sensors for pressure, load, acceleration, vibration, etc. and normally utilize the same instrumentation.

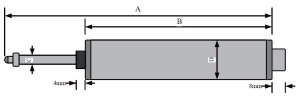

Features

● Full-scale ranges from 2mm to 100mm
● Accuracy, Rugged, low profile design
● Compact, lightweight, and easy to install
● Low measuring force
● Stainless housing is used
● Standard cable or optional connections.
● Easy to install and use.
● Infinite resolution
● Excellent stability and temperature compensation

Applications:
● Automotive
● Strain/Stress Analysis
● Material Elasticity Measuring
● Material Test
● Actuator Stroke Measuring
● Automation

Downloads

IT Linear Displacement Sensor.pdf
