Dynamic Four Channels Strain Gage Conditioning Amplifier

Description

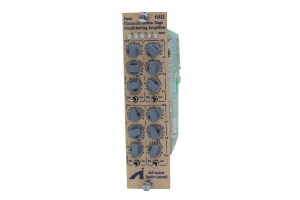

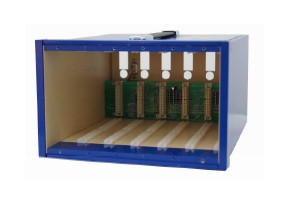

6411H Signal Conditioning System is designed with and incorporates all the features necessary for dynamic precise conditioning of strain gage and transducer inputs in the most severe operating environments.

6411H Signal Conditioning and amplifier’s low-level signals to high-level outputs for multiple channels can be simultaneously and dynamically recorded and displayed on external devices.

Applications:
●    Dynamic Material Test
●    Strain/Stress Analysis
●    Dynamic Material Elasticity Testing
●    SHPB Signal Conditioning
●    Load Cell Signal Conditioning
●    Foil Strain Gage Signal Conditioning
●    Piezo Resistive Sensor Signal Conditioning
●    Semiconductor Strain Gage Signal Conditioning

Features

Differential signal amplifier with high bandwidth up to 200k Hz
Gain Accuracy ± 0.1%,
Gain Step : 1, 2, 5, 10, 20, 50, 100, 200, 500,1000, 2000 to 5000 by rotary switch
Gain Linearity 0.01%
Fully calibrated gain from 1 to 5,000
4 Channels per Module
Accepts foil type strain gage, piezoresistive, potentiometers, etc.
Selectable bridge step excitation (16bits): 0.5 to 10V
Plug-in amplifier
Automatic bridge balance, with EEROM to preserve balance without power
Built-in with all bridge completion including 120 Ω or 1000 Ω and 350 Ω dummies.
Built-in with shunt calibration circuits
Built-in with four-pole Bessel low-pass filter with cutoff frequencies of 10 Hz, 30 Hz,50 Hz ~100k Hz and wide-band (14 position)
Others filter type and cut-off frequency is possible
Front-panel monitoring: Automatic balance status

Downloads

6411H Dynamic Four Channels Strain Gage Conditioning.pdf
