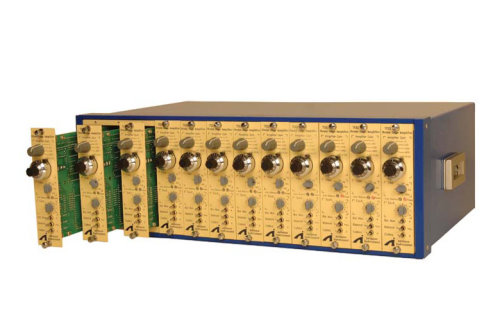

The 7000 Signal Conditioning System incorporates, as standard, all the features necessary for precise conditioning of strain gage and transducer inputs in the most severe operating environments.
The 7000 Signal Conditioning and amplifies low-level signals to high-level outputs for multiple-channel, simultaneous dynamic recording and display on external devices.

● Plug-in amplifier
● Accepts foil type strain gage, piezoresistive, potentiometers, etc.
● Selectable bridge Constant-voltage excitation: 0.5 to 10V
● Fully adjustable calibrated gain from 1 to 4,400
● Automatic bridge balance, with EEROM to preserve balance without power
● All bridge completion built in, including 120 or 1000 and 350 Ω dummies
● Built-in shunt calibration circuits
● Optically isolated shunt calibration relays provided as standard
● Built-in four-pole Bessel low-pass filter with cutoff frequencies of 1Hz, 10Hz, 100Hz, 1KHz and 10KHz
● Front-panel monitoring of: automatic balance status
